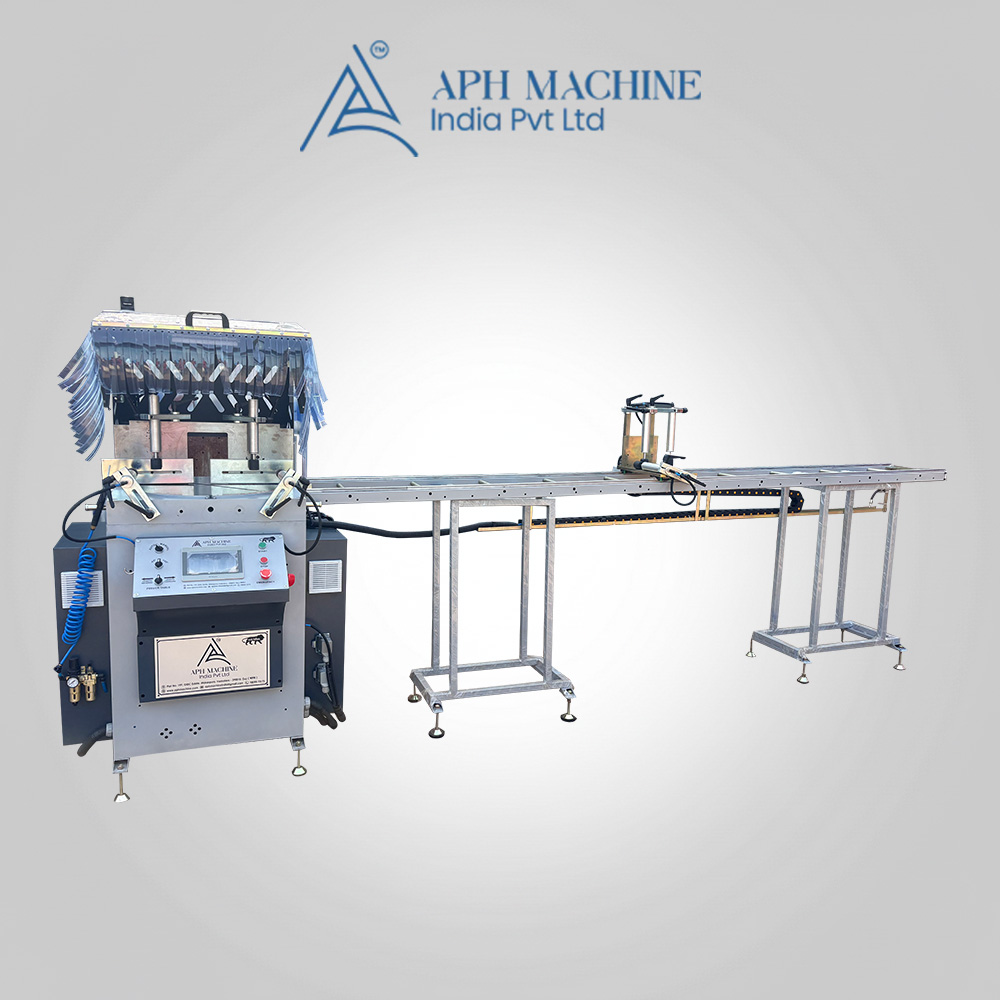

Window Making Machine: Reliable Partner in Construction Industry

APH Machine India Pvt. Ltd has designed an amazing solution for the construction industry. The window-making machine can simplify the production process. Crafted for precision, our engineers have designed the product, which will offer reliable performance. Our versatile window frame-making machine is uncomplicated. The user-friendly lever controls and the intuitive mechanical layout ensure high productivity from the first day.


The smooth sliding saw and the welding mechanism of the aluminium door making machine allow you to achieve clean cuts. The end product will not require any polishing and will fit in like a glove. The robust quality clamping system ensures that the aluminum profile is held securely in place during the cutting and welding process. The heavy frame of the machine provides much-needed stability and durability, which makes us one of the top window-making machine manufacturers in India.

Know More

Specifications Of Window Making Machine

Window Making Machine: Key Specifications
  • Model: MMUPST 420,500,550 & 600
  • Material to be Cut : All types of Aluminium Profiles & Sections, UPVC Profile & Heat Sink etc.
  • Main Shaft Rotation Speed : 2800 RPM
  • Machine Dimension : 850*850*1200 mm
  • Ait Pressure : 5-7 Bar
  • Motor Power : 3HP 3 Phase
  • Cutter Dia : 450, 500, 550 & 600
  • Cutter Make : Freud (Italy)
  • Gross Weight : 400 kg approx.
  • Auto Cut Off Sensor for fast cutting operation
  • Hydro Pneumatic Cutting Operation
  • Electro Pneumatic Panel
  • Pneumatic Clamp De-Clamp Operation
  • Pneumatic Cutting Spray Valve for bur free cutting
  • Cutting Degree Range : Both side 45` & 90`
  • Cutting Range : up to 10”
  • Roller Table : 3 Mtr & 1.5 Mtr
  • Compete high grade CI Casting structure with the head and rotatory base
  • Machine equipped of Siemens electrical kit for best quality performance
  • Machine equipped with Italian cylinder and lubricant technology
  • Comply with branded TATA/SKF bearing with machine
  • Back fence support with pneumatic clamping cylinder gives optimum grip and best but free cutting to profiles.
  • linear motion on tap fined roller back
  • Heavy duty machine win 1 year complete warranty accept Cutting
  • Carbide Italian saw blade supplied with a machine to ensure quality cutting.
  • Machine supply with cutter and tool kit.
  • Wide range of optional accessories available for the machine like roller track with tape fitted or DRO length gauge
About Are Product

Window Making Machine: Practical Construction Solutions

We have designed the window-making machine with so much practicality that it results in uniform results. We merge strength with simplicity, which leads to consistent performance over the years. Our high-standard machine meets quality and reliability at an affordable price range.


The aluminium window frame making machine has simple parts with little downtime. Easily accessible parts, minimal wear components, and simple lubrication- means the machine will remain in good condition even after continuous stress and under extreme environments. So, if you want to enhance the production flow, then select one of the reliable window-making machine suppliers in India.
