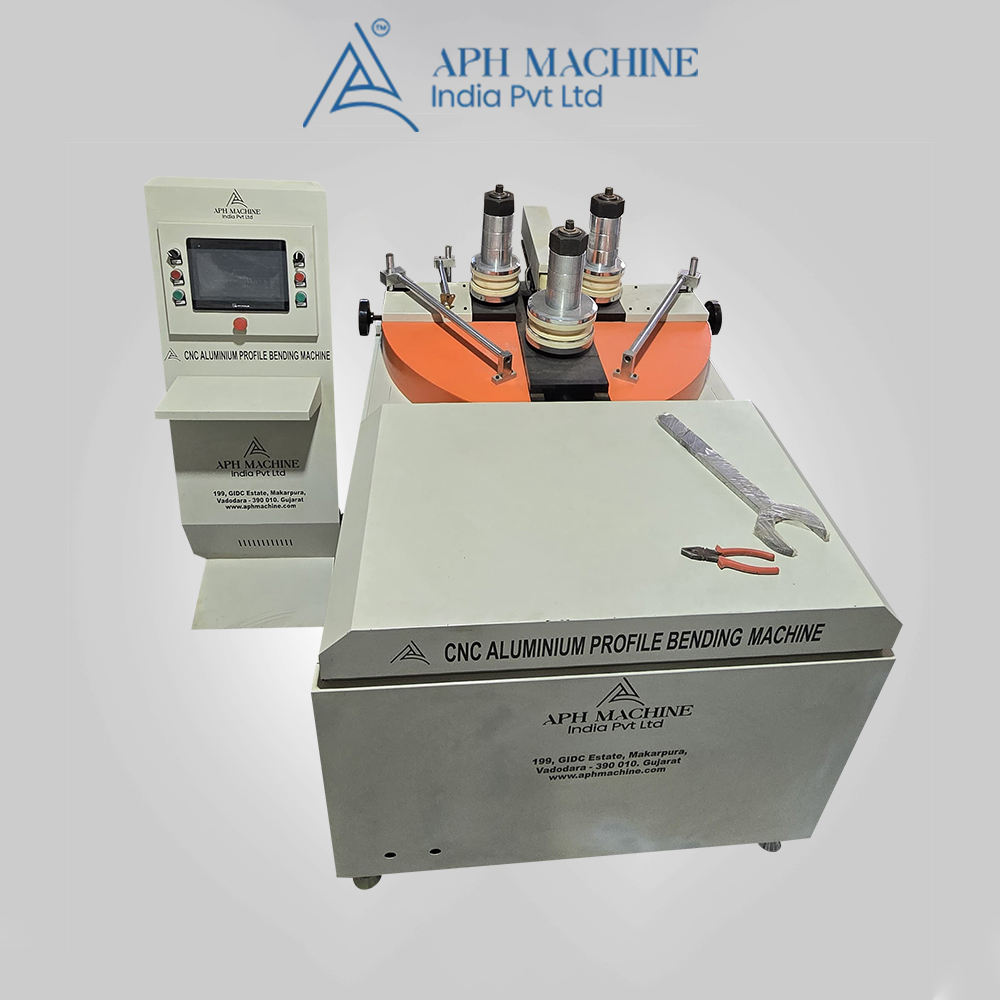

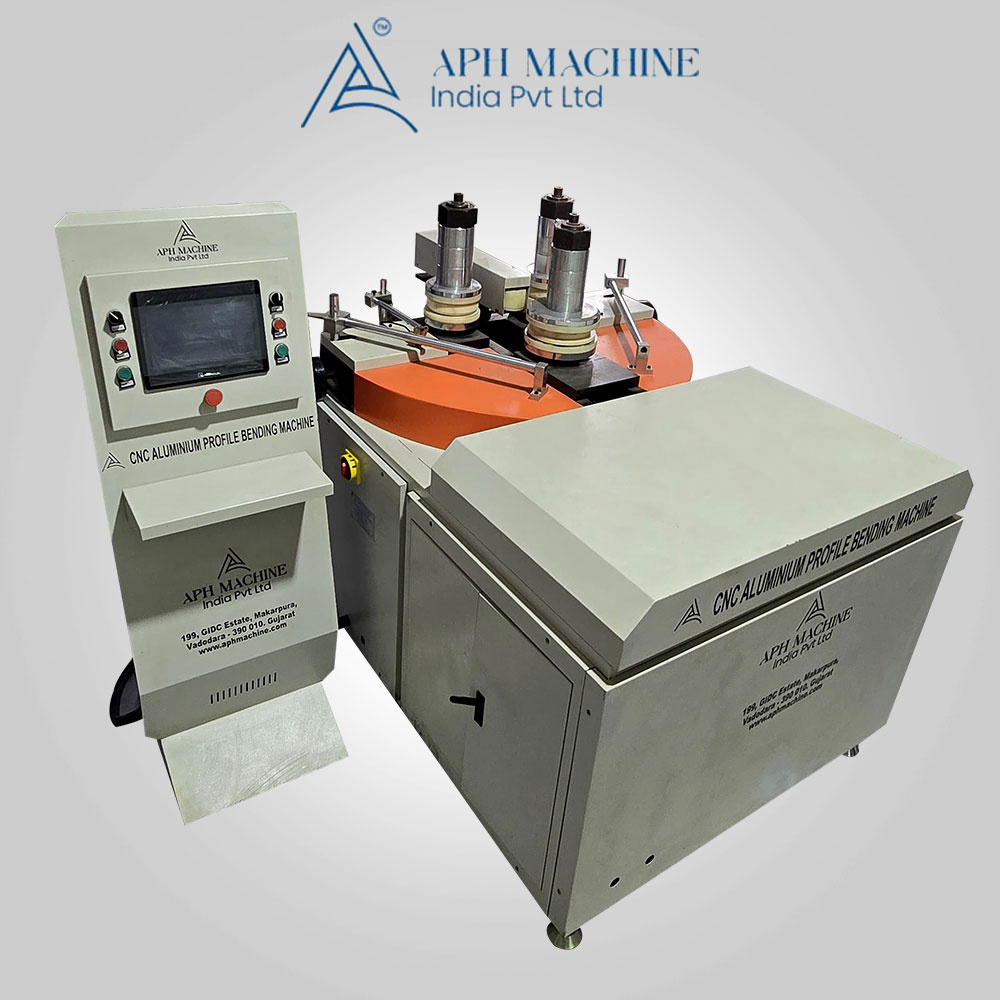

The CNC aluminum profile bending machine is used for bending aluminum profiles, pipes, and angles. Precision and flexibility are also very important when bending and designing the aluminum profile, so it is important to choose the best brand. At ‘APH Machine India Private Limited’, we design high-grade aluminium profile-bending machines, which combine state-of-the-art CNC technology.
The intuitive controls allow the fabricators to create the most complex bends with ease. Be it window frames, curtain wall profiles, or other architectural components, this machine makes bends in metals with ease and accuracy. As one of the best CNC aluminum profile bending machine manufacturers in India, we have designed a user-friendly machine and provide seamless transitions during the bending operations.
| Model number | WD4-360 |
| Power supply | 380V 50Hz (3-phase, 4 wires) |
| Motor power | 6.8 kW |
| Axis distance | 340–410 mm |
| Axis diameter | 65 mm |
| X Axis max torsion | 2600 N |
| Y Axis push strength | 20 TON (Max 23 TON) |
| Y axis repeating accuracy | < 0.02 mm |
| X axis positioning accuracy | < 0.04 mm |
| Y axis feeding size | 0–220 mm |
| Min working range | 70 mm (one-time finish) |
| Clamp profile range | Height: 260 mm, Width: 100 mm |
| Min bending arc diameter | 260 mm |
| Roller rotating speed | 1–15 r/min |
| Roller mould max diameter | 200 mm |
| Working pressure | 0.2–0.3 MPa |
| Hydraulic push pressure | 20T (200 MPa) |
| Overall size | 1300 * 1300 * 1450 mm |
| Weight | 1000 KGS |
Our machines are made from high-grade metal, which can handle the high stress without compromising on stability. We have integrated a high-grade roller with adjustable bending arms on our premium CNC aluminium bending machine, which ensures smooth operations.
Our bending machine is well-suited for small as well as large manufacturing operations. The advanced features and ability to cater to a wide range of fabrication requirements, from standard to custom designs, make us the trusted brand for CNC aluminium profile bending machine suppliers in India. The sturdy metal body ensures long-term reliability with minimal intervention. So, select the cost-effective solution for businesses to enhance the aluminium profile fabrication capabilities.
